ceiling linings includes standard plasterboard, fire, water, impact and sound resistant boards.

Brand : Wonderlead
Product origin : China.hebei
Delivery time : 7days
Supply capacity : 50000M2/month

Brief Introduction:

Waterproof Fireproofing Sound Proof Insulated Patterned Decorative Fibrous Drywall Gypsum Plasterboard Ceiling Price

LEADER is a professional gypsum board manufacturer in China, we can provide three kinds of gypsum board as following:

1. Standard Gypsum Board

With ivory color gypsum board paper faced, high-grade natural gypsum powder as main material. It can be widely used in housing, hotel, theater, school and hospital etc.

2. Fireproof Gypsum Board

With pink gypsum board paper faced, high fiber reinforced materials and fireproof additive as core materials,

which extremely improve the fireproof capacity of the plasterboard. It can be widely used in high fireproof

requirement environment, such as hotel, hospital, school, house and factory etc.

3. Waterproof Fireproof Drywall Gypsum Board

With green gypsum board paper faced, high fiber reinforced materials and hydrophobic adsorbent as core

materials, which extremely improve the waterproof capacity of the plasterboard.


Technical Data:

Item
Standard
Test Value
Rupture Load(N)
Thickness 9.5mm--Vertical
≥ 360
440
Thickness 9.5mm--Horizontal
≥ 140
205
Thickness 12mm--Vertical
≥ 500
590
Thickness 12mm--Horizontal
≥ 180
212
Dimension Difference(mm)
Length
-6— 0
-0.1— 0
Width
-5— 0
0
Thickness 9.5mm
± 0.5
-0.1— 0
Thickness 12mm
± 0.6
-0.1— 0
The Stability of Meeting Fire (For Fireproof Gypsum Board)
Not Less Than 20min
> 20min
Cater-corner Length Difference MM
≤ 5
0-1
Inner Irradiation Ratio
I Ra ≤ 1.0
I Ra < 1.0
Outer radiation Ratio
I γ ≤ 1.3
I γ < 0.1
Weight per unit (kg/m² )-9.5thickness
≤ 9.5
7.7

Specification:

Width(mm)
Length(mm)
Thickness(mm)
Edge
1200, 1220
2400, 2400, 3000, 1800, 1830
9.5, 12, 12.5, 15
Tegular &Square
Waterproof Fireproof Drywall Gypsum Board is available to be produced the following dimensions range according to customer requirements: Thickness 8.0-25mm;width1200-1250mm;length 1500-4200mm.
Both Metric and Imperial systems are accept.

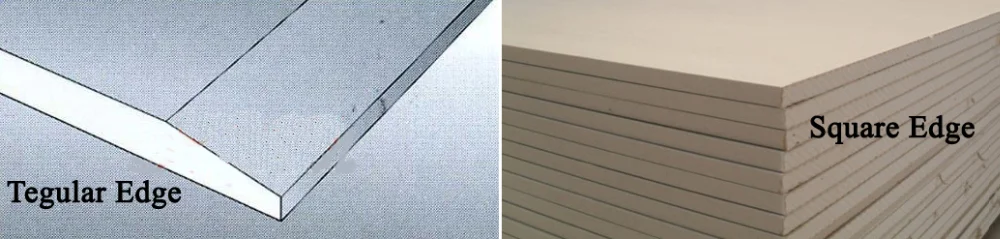

Edge:

The price of tegular edge is the same as the square edge.

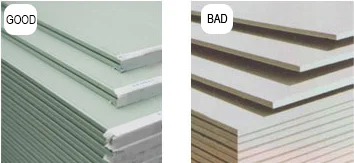

How to choose good quality gypsum board?

(1)Paper:

High-quality paper gypsum board with high strength, surface smooth, surface spots, easy to crack, because the paper gypsum plaster More than 70% of the board's strength comes from paper, so paper is a key factor in ensuring the strength of gypsum board

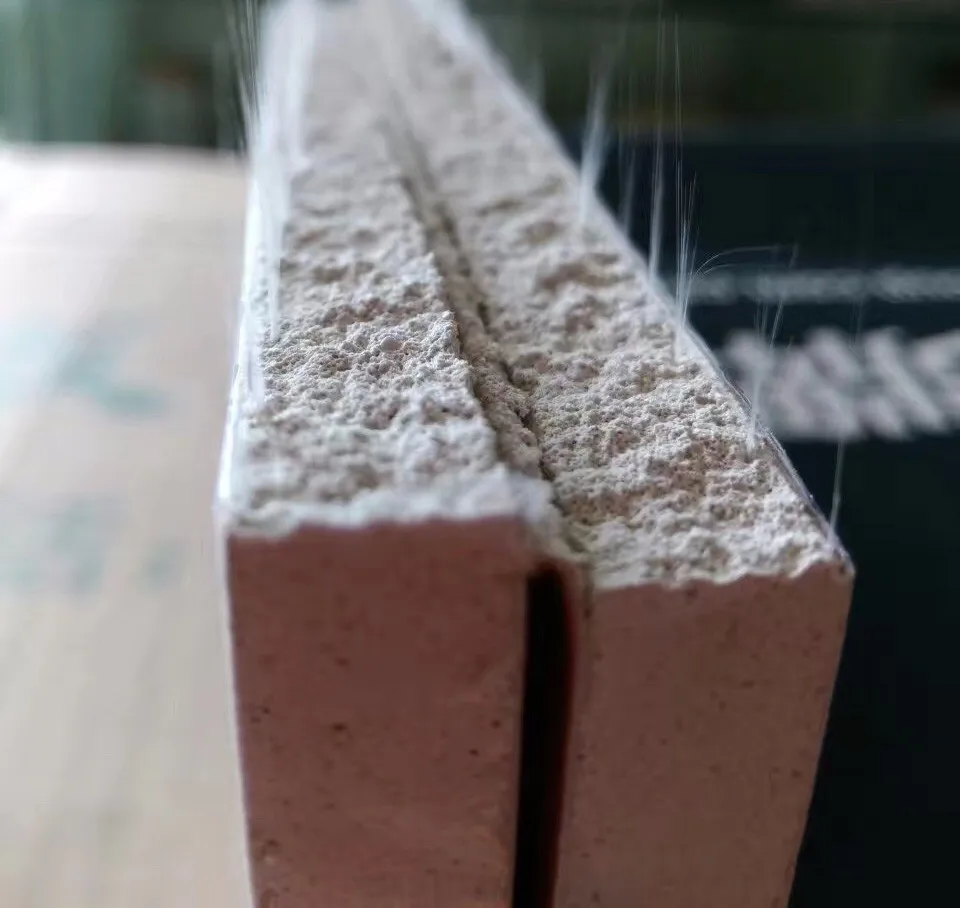

(2)Paper bonding

With a knife on the surface of the Waterproof Fireproof Drywall Gypsum Board draw a cross hole, opened the paper, you can find high-quality paper gypsum board paper is still good adhesion in the gypsum core, gypsum core is not exposed; and poor quality plaster Plate paper can tear off most or even all the paper, gypsum core completely exposed.

Product Application:

(1). Gypsum Board ceiling and drywall system, such as housing, hotel, theater, school, hospital etc.
(2). Fireproof gypsum board can be widely used in high fireproof requirement environment, such as hotel, hospital, school, house and factory etc.
(3). Waterproof Fireproof Drywall Gypsum Board can be widely used in strong humidity environment, such as kitchen, bathroom, washroom and inner garage etc.
